C chegrandi New Member Dec 6, 2011 #1 Dec 6, 2011 #1 Hi everyone, I dismantled my car's vacuum system and now I don't know where the hoses go. Do any of you have a vacuum hose routing diagram or label for a Corolla 1988 FX 1.6 (Automatic Hatchback)? Any help would be greatly appreciated!
Hi everyone, I dismantled my car's vacuum system and now I don't know where the hoses go. Do any of you have a vacuum hose routing diagram or label for a Corolla 1988 FX 1.6 (Automatic Hatchback)? Any help would be greatly appreciated!
Scott O'Kashan Super Moderator Dec 6, 2011 #2 Dec 6, 2011 #2 Curious as to why you'd do that? A decent auto repair manual should have the vacuum hose diagram you seek. Check auto parts stores and/or bookstores.
Curious as to why you'd do that? A decent auto repair manual should have the vacuum hose diagram you seek. Check auto parts stores and/or bookstores.

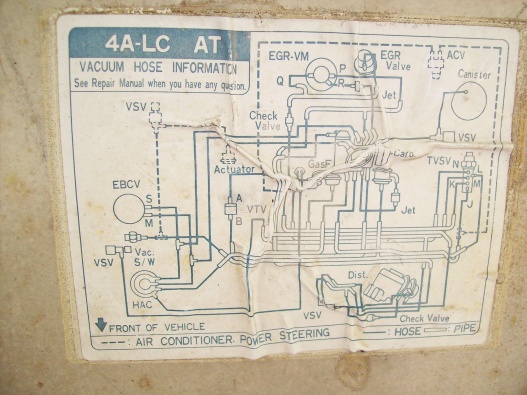

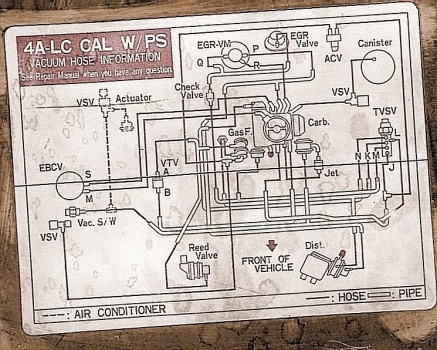

J jshen2 New Member Dec 14, 2011 #3 Dec 14, 2011 #3 Vaccum Diagram for 1988 Toyota Corolla FX Hope these diagrams are useful. Attachments Photo - Car - 4ALC (Caliiformia) vacuum hose diagram - 86corolla4A_LCvacuumhose2.jpg 100.4 KB Views: 26 100_0199.jpg 97.3 KB Views: 27
trlhiker New Member Dec 16, 2011 #4 Dec 16, 2011 #4 chegrandi said: Hi everyone, I dismantled my car's vacuum system and now I don't know where the hoses go. Do any of you have a vacuum hose routing diagram or label for a Corolla 1988 FX 1.6 (Automatic Hatchback)? Any help would be greatly appreciated! Click to expand... Why in the world would you do something like that and not draw a diagram while removing them?
